Plug Debris Catcher Usage Wellhead Manifold 3 1/16"-70Mpa PSL 3 Production Level

Wellhead Manifolds API 16C Plug debris catcher Manifold

The plug debris catcher manifold has the capability of continuous debris removal without shutting down flow back of drilling operations. Capable of capturing frac sand and formation solids, as well as for work-over use to capture drill out solids, such as cement retainer, bridge plug, and cement solids.

Debris & formation solid removal is upstream of expensive and sensitive safety and production measurement equipment. This tool is capable of time identification and measurement of unwanted solids as well as, with manifold use, flow control of the well.

• Removal and cleanup on horizontal-multilateral completions and work-overs; drill-outs of completion tools (i.e. bridge plugs, selective frac packer systems, etc.).
• Liquid or solid waste spillage contained in catcher-lifting skid, which is environmentally compliant.
• Flow design captures debris inside engineered screen (screen flow rate and particle size can be selected via screen size variation to remove all sizes of solids) which allows easy solid break out.
• Eliminates a drilling blind operation by providing a safe sampling location during continuous operation versus rig tank or test unit.
• Liquid or solid waste spillage contained in catcher-lifting skid.

Specification

hydraulic choke manifold

diverter manifold

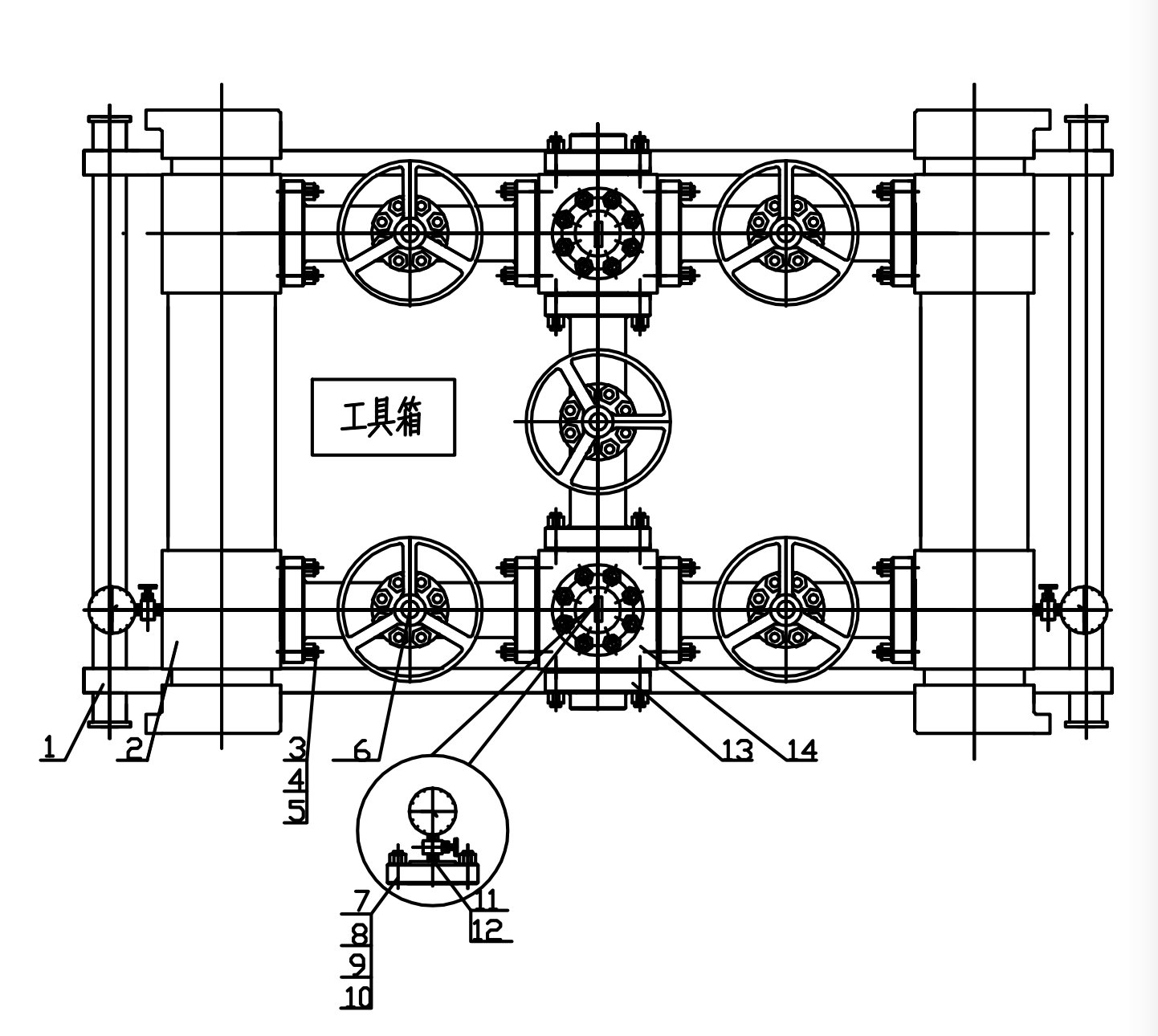

Plug Debris Catcher Usage Wellhead Manifold 3 1/16"-70Mpa PSL 3 Production Level Images
