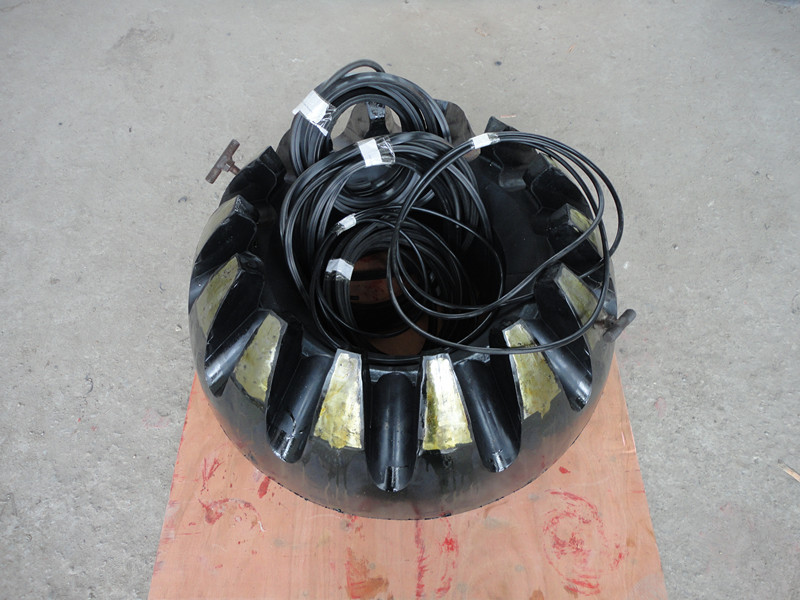

Features of Annular BOP packing elements
* Annular BOP packing elements with longer service and sealing life
* We are able to supply packing elements in shaffer type annular BOP/hydril type annular BOP/cameron type annular BOP
* The brand of the annular BOP is HRSB, SHENKAI, ETC
List of seal assy. for annular BOP
Seal assembly (model D) for FH35-35/70, 13 5/8 " - 5000/10000 Psi annular BOP
1 (one) set consists of:
Ball seal P/n F35.11.00 NBR 1 ea.
- "O" ring P/n F751A.13.03 NBR 1 ea.
- "O" ring P/n F35.13 NBR 1 ea.
- seal p/n F35.14.00 NBR 2 set
- seal p/n F35.16.00 NBR 2 set
- seal p/n F35.19.00 NBR 2 set

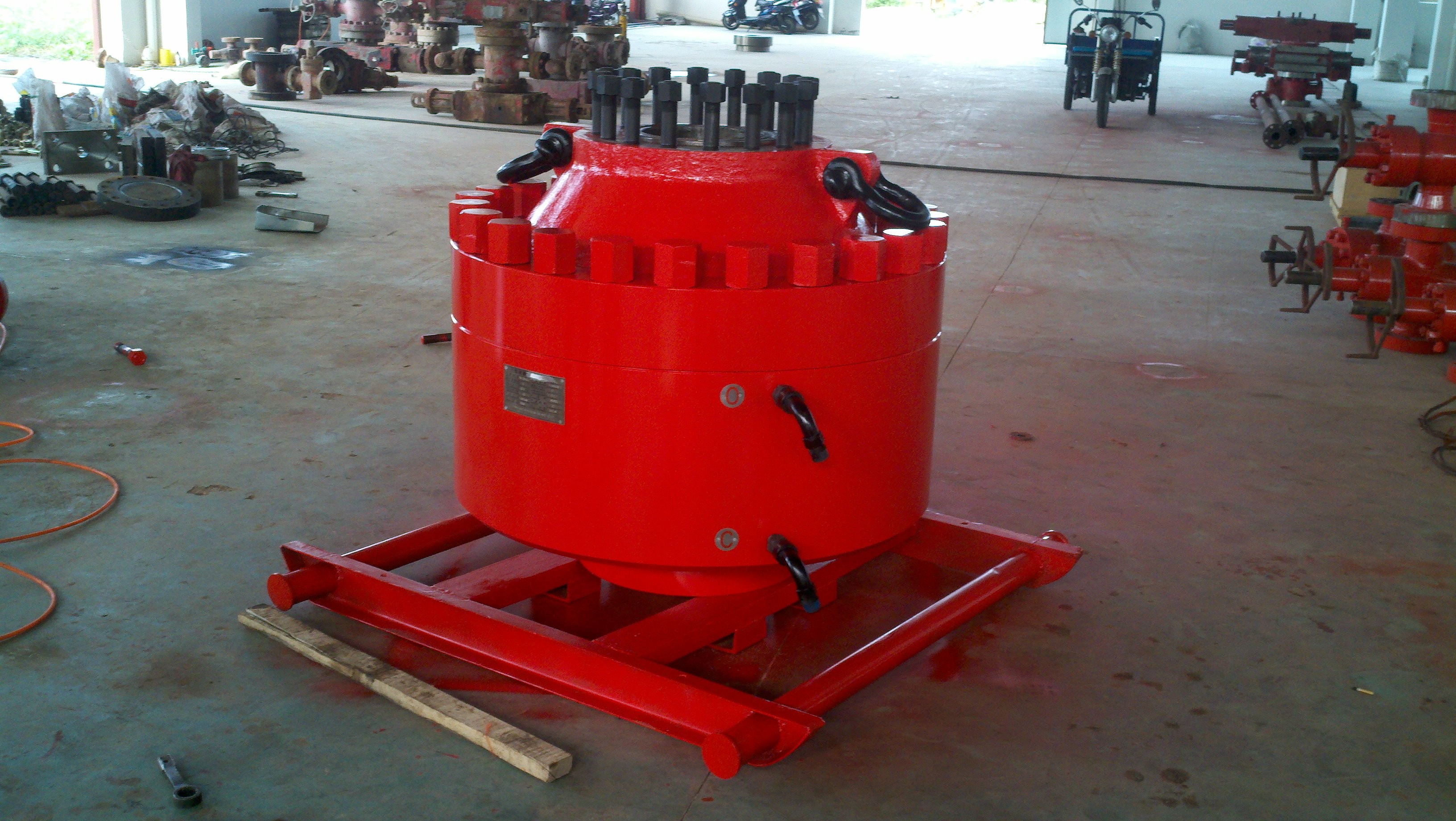

Detailed specification of annular BOP
| 1 | 13 5/8″-3000psi Annular BOP | Bore: 13 5/8″
Working pressure: 3,000psi
Top connection: 13 5/8″-3000psi 6B R57 SST Studded
Bottom connection: 13 5/8″-3000psi 6B R57 SST Flanged |
| 2 | 13 5/8″-5000psi Annular BOP | Bore: 13 5/8″
Working pressure: 5,000psi
Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded
Bottom connection: 13 5/8″-5000psi 6BX BX160 SST Flanged |
| 3 | 13 5/8″-5000/10000psi Annular BOP | Bore: 13 5/8″
Working pressure: 5,000psi
Top connection: 13 5/8″-5000psi 6BX BX160 SST Studded
Bottom connection: 13 5/8″-10000psi 6BX BX159 SST Flanged |
| 4 | 13 5/8″-10000/15000psi Annular BOP | Bore: 13 5/8″
Working pressure: 10,000psi
Top connection:13 5/8″-10000psi 6BX BX159 SST Studded
Bottom connection:13 5/8″-15000psi 6BX BX159 SST Flanged |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
We are able to manufacture and supply the wellhead equipment, well surface testing equipment, well flow control equipment according to API 6A, API 16A, and API 16C. The main products include wellhead Christmas tree, casing head, tubing head, casing spool, tubing spool, Gate valve, Choke valve, Check valve, , VR plug, Tubing hanger, casing hanger, Running tool, Wear bushing, double studded adpater flange,spacer spool / riser spool, flange adapter, union flange, Hammer union, Elbow, swivel joint, block cross, Block Tee, companion flange, instrument flange, weldneck flange, FC gate, FC seat, FC stem, API Clamp, API Clamp Hub, various high pressure manifold such as choke manifold,
JC Wellhead's advantage:
* Strict quality control on raw material and machining, we can arrange the SGS or BV to witness the test
* We supply various wellhead products to meet the customers' operation.
* Timely delivery, professional service on export procedure,
* Product guarantee and best after-sales service.
Welcome to contact us for any inquiry or requirement!
