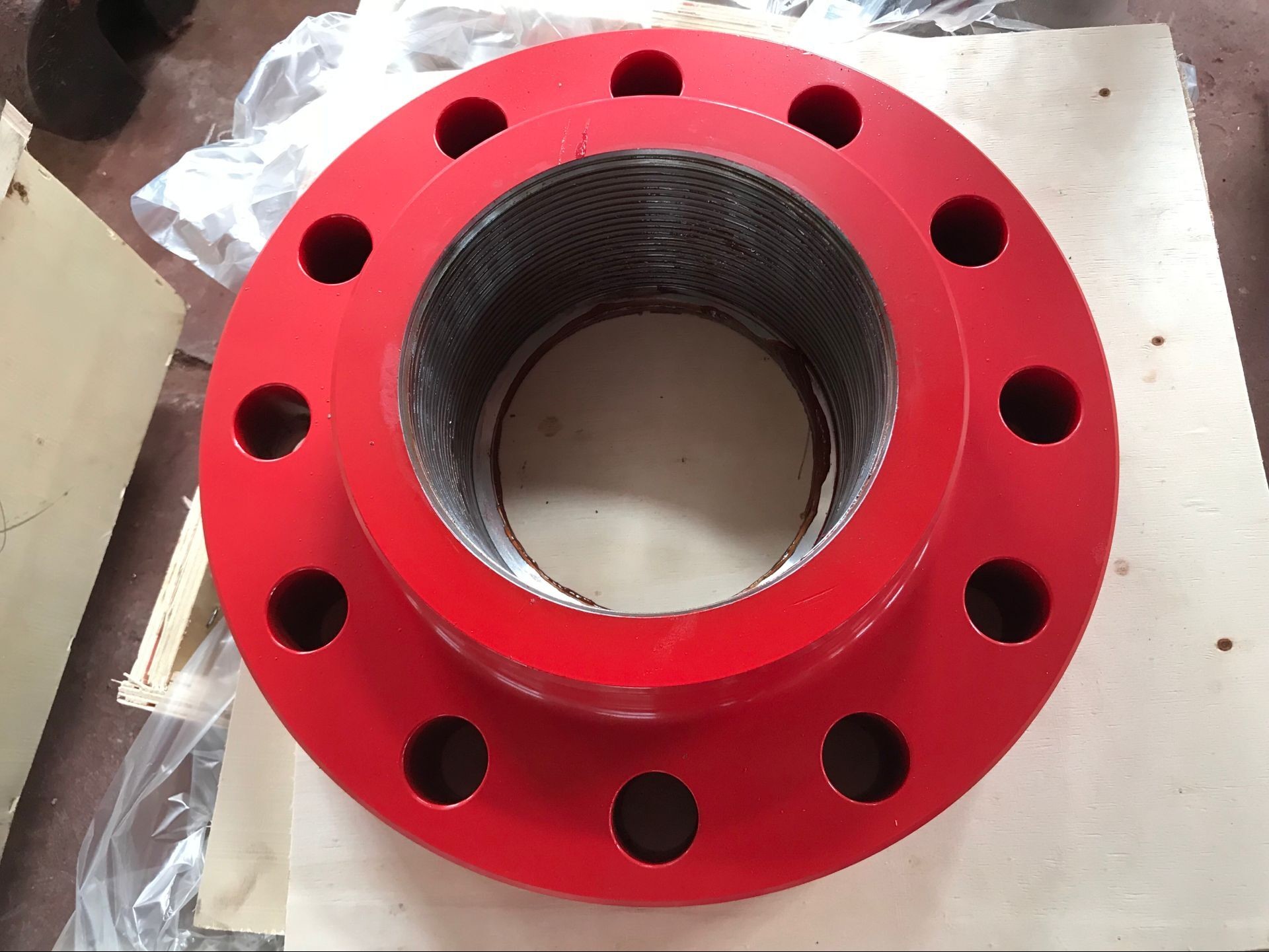

Type R wellhead adapter flange is a kind of connection part of the wellhead equipment. The R and RX wellhead adapter flanges are designed and manufactured according to API 6A specification.The flange end meet the requirements of API 6A Ring groove R or RX Type.
Features of Wellhead Adapter Flange
* Made from alloy steel forging with heating treatment.
* Applied for Hydrogen sulfide H2S resistant servicewith reference to NACEMR-0175 specifications.
* The specification of wellhead adapter flange can be available as per customers' requirements.

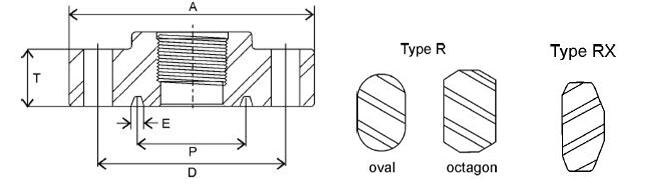

Specification of wellhead Adapter Flange Type R & Type RX
| API pressure Rating | Flange | Ring Groove | Bolt Studs |
| Nominal Size inch | O.D (A) Inch | Height T Inch | P inch | E inch | Ring No. | D inch | No. | Size inch |
| 2000psi R or RX Gasket | 2 1/16” | 6 1/2 | 1 5/16 | 3 1/4 | 15/32 | 23 | 5 | 8 | 5/8*4 1/2 |
| 2 9/16” | 7 1/2 | 1 7/16 | 4 | 15/32 | 26 | 5 7/8 | 8 | 3/4*5 |
| 3 1/8” | 8 1/4 | 1 9/16 | 4 7/8 | 15/32 | 31 | 6 5/8 | 8 | 3 /4*5 1/4 |
| 4 1/16” | 10 3/4 | 1 13/16 | 5 7/8 | 15/32 | 37 | 8 1/2 | 8 | 7/8* 6 |
| 5 1/8” | 13 | 2 1/16 | 7 1/8 | 15/32 | 41 | 10 1/2 | 8 | 1 * 6 3/4 |
| 7 1/16” | 14 | 2 3/16 | 8 5/16 | 15/32 | 45 | 11 1/2 | 12 | 1* 7 |
| 9” | 16 1/2 | 2 1/2 | 10 5/8 | 15/32 | 49 | 13 3/4 | 12 | 1 1/8*8 |
| 11” | 20 | 2 13/16 | 12 3/4 | 15/32 | 53 | 17 | 16 | 1 1/4* 8 3/4 |
| 13 5/8” | 22 | 2 15/16 | 15 | 15/32 | 57 | 19 1/4 | 20 | 1 1/4* 9 |
| 16 3/4” | 27 | 3 5/16 | 18 1/2 | 15/32 | 65 | 23 3/4 | 20 | 1 1/2 * 101/4 |
| 21 1/4” | 32 | 3 7/8 | 23 | 17/32 | 73 | 28 1/2 | 24 | 1 5/8*11 3/4 |
| 3000psi R or RX Gasket | 2 1/16” | 8 1/2 | 1 13/16 | 3 3/4 | 15/32 | 24 | 6 1/2 | 8 | 7/8*6 |
| 2 9/16” | 9 5/8 | 1 15/16 | 4 1/4 | 15/32 | 27 | 7 1/2 | 8 | 1*6 1/2 |
| 3 1/8” | 9 1/2 | 1 13/16 | 4 7/8 | 15/32 | 31 | 7 1/2 | 8 | 7/8*6 |
| 4 1/16” | 11 1/2 | 2 1/16 | 5 7/8 | 15/32 | 37 | 9 1/4 | 8 | 1 1/8* 7 |
| 5 1/8” | 13 3/4 | 2 5/16 | 7 1/8 | 15/32 | 41 | 11 | 8 | 1 1/4*7 3/4 |
| 7 1/16” | 15 | 2 1/2 | 8 5/16 | 15/32 | 45 | 12 1/2 | 12 | 1 1/8*8 |
| 9” | 18 1/2 | 2 13/16 | 10 5/8 | 15/32 | 49 | 15 1/2 | 12 | 1 3/8*9 |
| 11” | 21 1/2 | 3 1/16 | 12 3/4 | 15/32 | 53 | 18 1/2 | 16 | 1 3/8*9 1/2 |
| 13 5/8” | 24 | 3 7/16 | 15 | 15/32 | 57 | 21 | 20 | 1 3/8*10 1/4 |
| 16 3/4” | 27 3/4 | 3 15/16 | 18 1/2 | 21/32 | 66 | 24 1/4 | 20 | 1 5/8*11 3/4 |
| 20 3/4” | 33 3/4 | 4 3/4 | 23 | 25/32 | 74 | 29 1/2 | 20 | 2 * 14/12 |
| 5000psi R or RX Gasket | 2 1/16” | 8 1/2 | 1 13/16 | 3 3/4 | 15/32 | 24 | 6 1/2 | 8 | 7/8*6 |
| 2 9/16” | 9 5/8 | 1 15/16 | 4 1/4 | 15/32 | 27 | 7 1/2 | 8 | 1*6 1/2 |
| 3 1/8” | 10 1/2 | 2 3/16 | 5 3/8 | 15/32 | 35 | 8 | 8 | 1 1/8*7 1/4 |
| 4 1/16” | 12 1/4 | 2 7/16 | 6 3/8 | 15/32 | 39 | 9 1/2 | 8 | 1 1/4*8 |
| 5 1/8” | 14 3/4 | 3 3/16 | 7 5/8 | 15/32 | 44 | 11 1/2 | 8 | 1 1/2*10 |
| 7 1/16” | 15 1/2 | 3 5/8 | 8 5/16 | 17/32 | 46 | 12 1/2 | 12 | 1 3/8*10 3/4 |
| 9” | 19 | 4 1/16 | 10 5/8 | 21/32 | 50 | 15 1/2 | 12 | 1 5/8*12 |
| 11” | 23 | 4 11/16 | 12 3/4 | 21/32 | 54 | 19 | 12 | 1 7/8* 13 3/4 |
