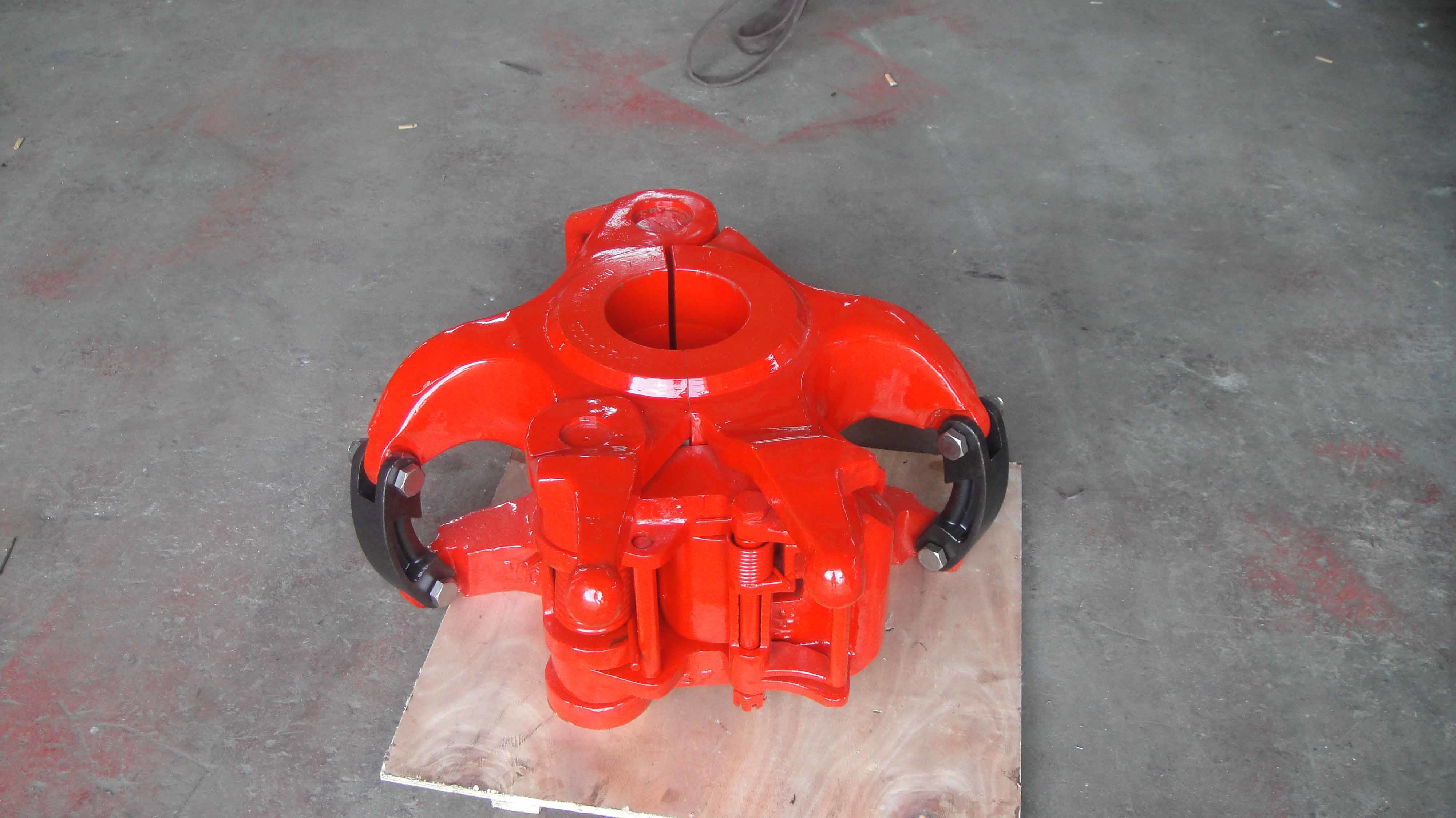

DDZ Elevator is a kind of drill pipe elevator which is used in wellhead service to hoist the drilling tools. The DDZ Elevator is designed with 18 Degree which is important apparatus to control the descending and ascending of the drill pipes in the operation of well-drill or gas-drill or geological prospecting. The DDZ series elevators are in conformity with the requirements SY5035 and API Spec.8A/8C.The DDZ elevators can handle drill pipes from 2 3/8" EU--6 5/8" IEU diameter. The max rating loads of 18 degree drill pipe elevator series are 900kN(100tons),
1125kN(125tons),1350kN(150tons),2250kN(250tons),3150kN(350tons),4500kN(500tons).
Main Technical Parameters of DDZ Elevator
| Model | Drill Pipe Size and Style | Diameter of Elevator Bores | Elevator Sign | Max. Load Tons(KN) |
| DDZ67 | 23/8EU | 67 | 23/8EU | DDZ 150 (1350) 250 (2250) 350 (3150) 500(4500) DDZ TD 350 (3150) 500(4500) |
| DDZ83 | 27/8EU | 83 | 27/8EU |
| DDZ101 | 31/2EU | 101 | 31/2EU |
| DDZ109 | 4IU | 109 | 4IU |
| DDZ121 | 4EU | 121 | 4EU |
| 41/2IU | 41/2IU |
| 41/2IEU | 41/2IEU |
| DDZ133 | 41/2EU | 133 | 41/2EU |
| 5IEU | 5IEU |
| DDZ148 | 51/2IEU | 148 | 51/2IEU |
| DDZ 159 | 5 7/8IEU | 159 | 5 7/8IEU |
| DDZ179 | 6 5/8IEU | 179 | 6 5/8IEU |
Rated capacities- DDZ 18 degree Type series Elevators
